Technical Background and Principles
Semiconductor devices generate a significant amount of heat during operation. If this heat is not dissipated promptly, it can lead to reduced device performance, shortened lifespan, or even damage. While traditional heat dissipation materials such as copper and aluminum possess certain thermal conductivity properties, they often fall short when faced with the high thermal loads of high-performance semiconductor devices. Therefore, the development of a new type of heat dissipation material with superior thermal conductivity is of paramount importance.

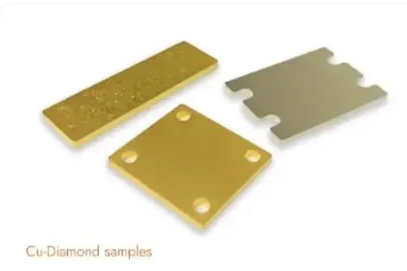

Copper-diamond composite materials were developed precisely to address this need. They combine copper—widely used in semiconductor heat dissipation—with diamond, which possesses exceptional thermal conductivity. Through a unique manufacturing process, these two materials are seamlessly integrated, achieving a balance between the thermal conductivity and thermal expansion coefficients of the two raw materials, thereby delivering unprecedented heat dissipation performance. With a thermal conductivity far exceeding that of pure copper, this material effectively reduces the operating temperature of semiconductor devices, thereby enhancing their performance and reliability.
Technical Features and Advantages
1. High Thermal Conductivity:
The thermal conductivity of copper-diamond composites far exceeds that of pure copper, reaching values as high as 1000 W/m•K or more. This property enables the material to rapidly dissipate heat generated by semiconductor devices in a very short time, thereby ensuring stable device operation.
2. Low Thermal Expansion Coefficient:
Diamond has a low thermal expansion coefficient, which means that copper-diamond composites undergo minimal dimensional changes during temperature fluctuations, thereby enhancing the stability and reliability of equipment.
3. Excellent Mechanical Properties:
The high hardness and strength of diamond endow copper-diamond composites with excellent mechanical properties, such as wear resistance and impact resistance, enabling them to maintain stable performance in harsh operating environments.
4. Good Machinability:
Copper-diamond composites produced through a unique manufacturing process exhibit excellent machinability, allowing them to be easily fabricated into heat sinks of various shapes and sizes.
Applications and Prospects
1.High-Performance Computing (HPC)/AI Chips: With the rapid development of artificial intelligence and big data technologies, the demand for high-performance computing chips is growing. The high thermal conductivity of copper-diamond composites makes them an ideal heat dissipation material for these chips.
2. RF Power Amplifiers: RF power amplifiers are widely used in fields such as wireless communications and radar. Due to their high operating frequencies and high power levels, heat dissipation is a particularly critical issue. Copper-diamond composites can effectively address this problem, enhancing the performance and reliability of RF power amplifiers.
3. Power Converters: Power converters play a vital role in power electronic systems. Their thermal performance directly impacts the stability and efficiency of the entire system. The application of copper-diamond composite materials will help improve the thermal performance of power converters, thereby enhancing the performance of the entire system.
4. High-Power Semiconductor Lasers: High-power semiconductor lasers are widely used in medical, scientific research, and industrial fields. Thermal management has long been one of the key factors limiting their performance improvement. The application of copper-diamond composite materials is expected to resolve this issue and drive the development of high-power semiconductor lasers.
