Product Description
Diamond wheels are precision dressing tools manufactured using high-quality diamond abrasives and advanced bonding techniques, specifically designed for high-precision CNC grinding machines and tool grinders. By performing efficient and precise contour dressing on grinding wheels, they ensure consistent geometric shape and sharp grinding edges, serving as core process equipment for achieving high-efficiency, high-precision batch processing.
Our Advantages
Core Advantages
Ultra-High Precision: Profile accuracy as tight as ±0.003mm with exceptional repeatability,
ensuring consistent workpiece machining.
Exceptional Durability: Premium high-strength diamond ensures extended wear life,
significantly reducing per-piece dressing costs and changeover downtime.
High Efficiency & Stability: Rapidly restores grinding wheel profile and sharpness,
substantially boosting overall production line efficiency.
Versatile Application: Suitable for dressing ceramic, CBN, and alumina grinding wheels with complex profiles,
meeting diverse precision grinding requirements.
Selection of Raw Materials

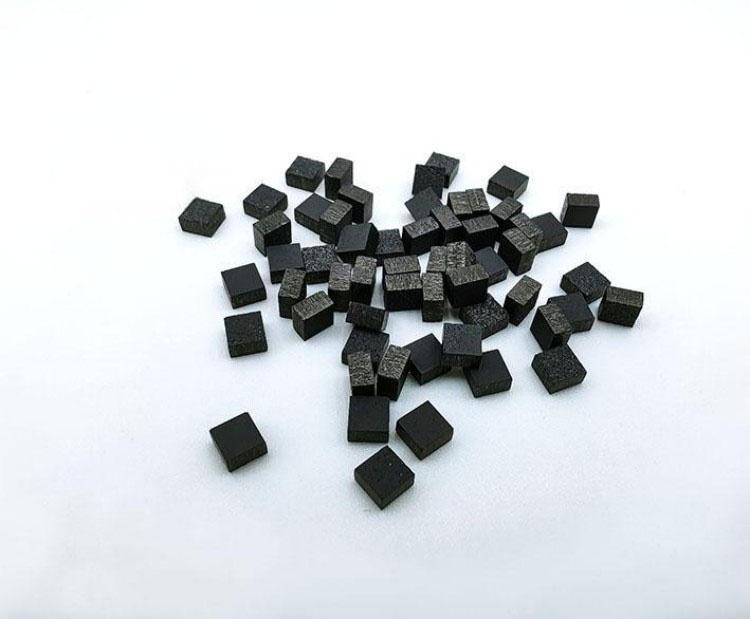

Diamond types primarily include natural diamonds, synthetic diamonds, and CVD diamonds. The selection of diamond type and its arrangement along the edge determine the service life and performance of the diamond rotary dresser.
Engineers select the appropriate diamond type based on the customer's specific application
requirements.
Product Application Scope
CNC dressing technology for dressers can be applied across all grinding fields. Its flexible CNC control allows easy modification of
machining processes and enables dressing of grinding wheels with various shapes, making it particularly suitable for small-to-
medium batch production.
Typical Applications
Gears, threads, bearing journals, valves, engine valves, fuel injection components, engine parts, transmission components, etc.
Automotive Components: Precision grinding of crankshafts, camshafts, gears, and bearing raceways.
Tool Manufacturing: Form grinding of complex profiles for end mills, drills, taps, inserts, etc.
Precision Machinery: Processing of precision transmission components such as guideways, screws, threads, and rotors.
R&D Design, OEM & ODM

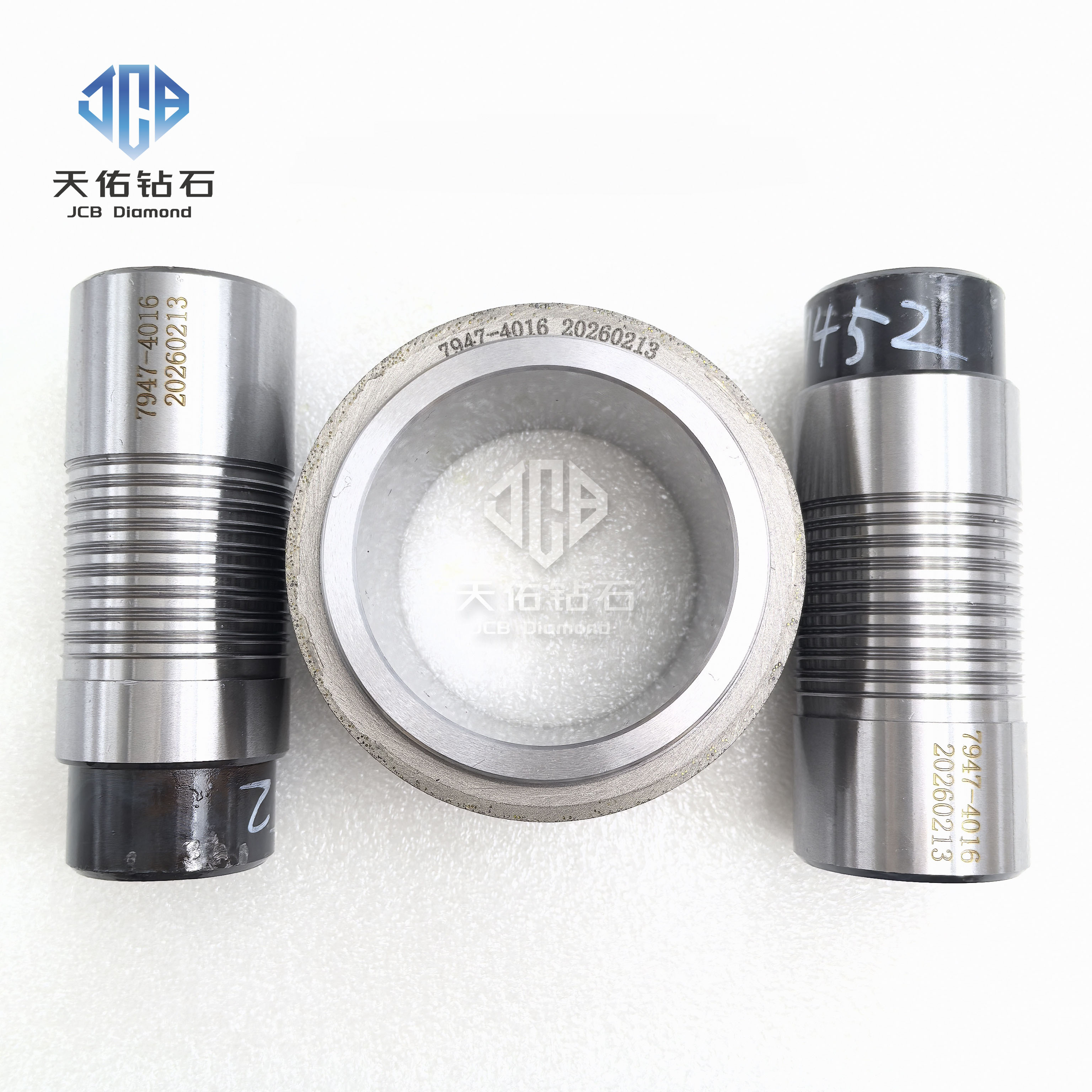

When customers order self-aligning rollers, required information includes outer diameter, inner angle, curvature radius, width, and bore size. Based on these parameters, our engineers prepare diamond roller design drawings and submit them to the customer's engineering team for confirmation, ensuring the design fully meets their requirements.
Choose us for:
Expert technical consultation, rapid custom prototyping, consistent product quality, and comprehensive after-sales support. We are committed to providing reliable tooling solutions for your precision grinding processes, helping enhance product quality and production efficiency.
Profile degree=R±0.002 R Tolerance=±0.002 R Minimum=0.02M
