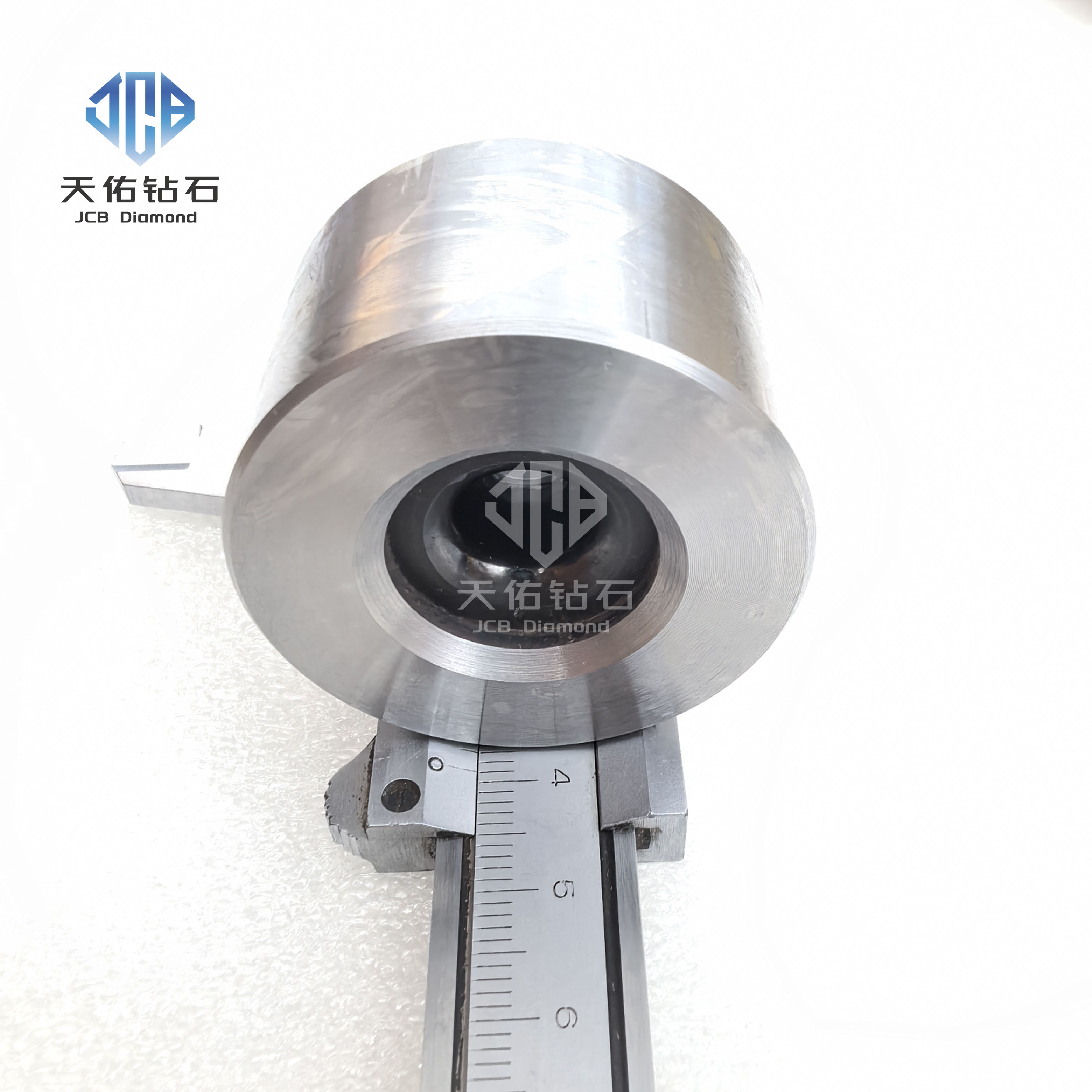

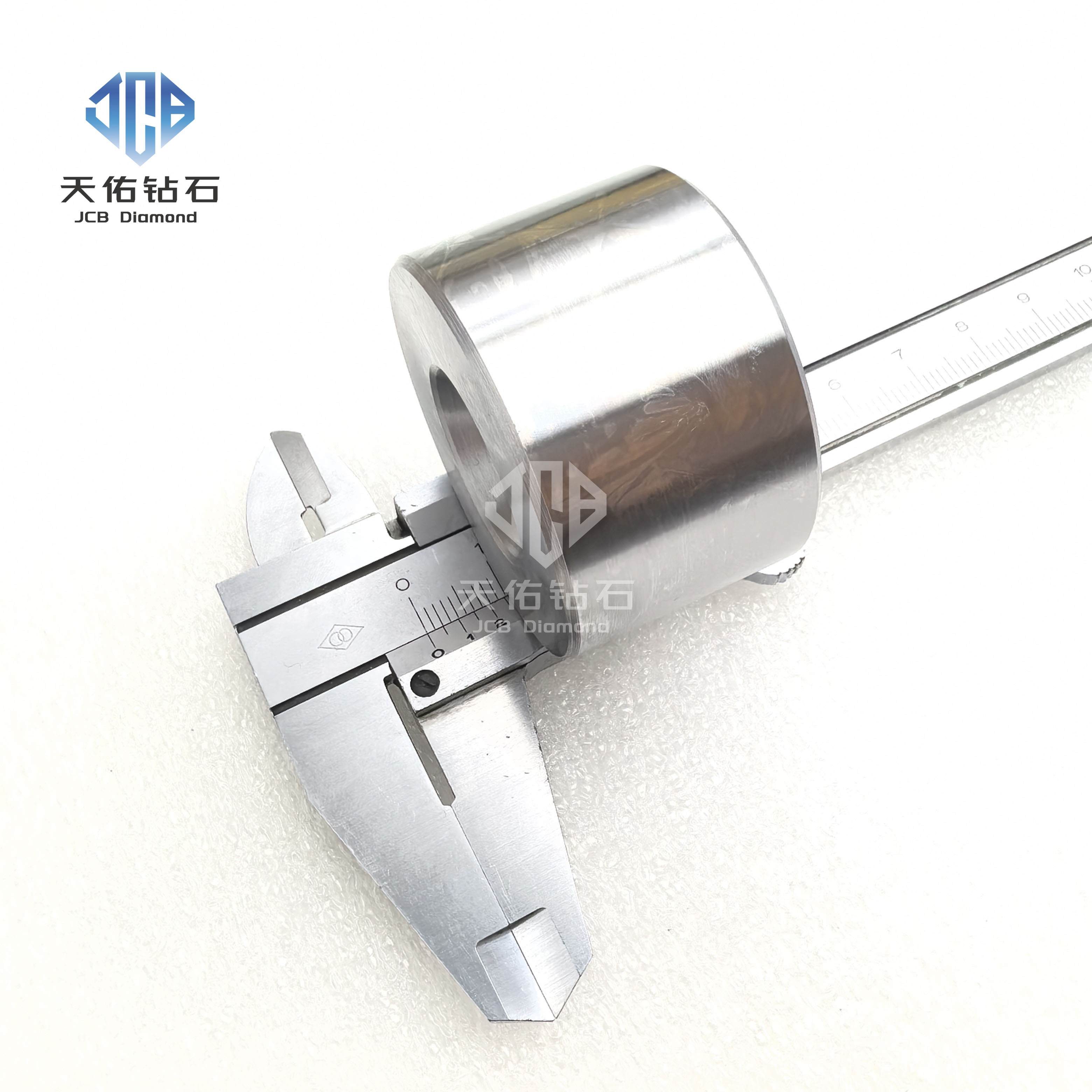

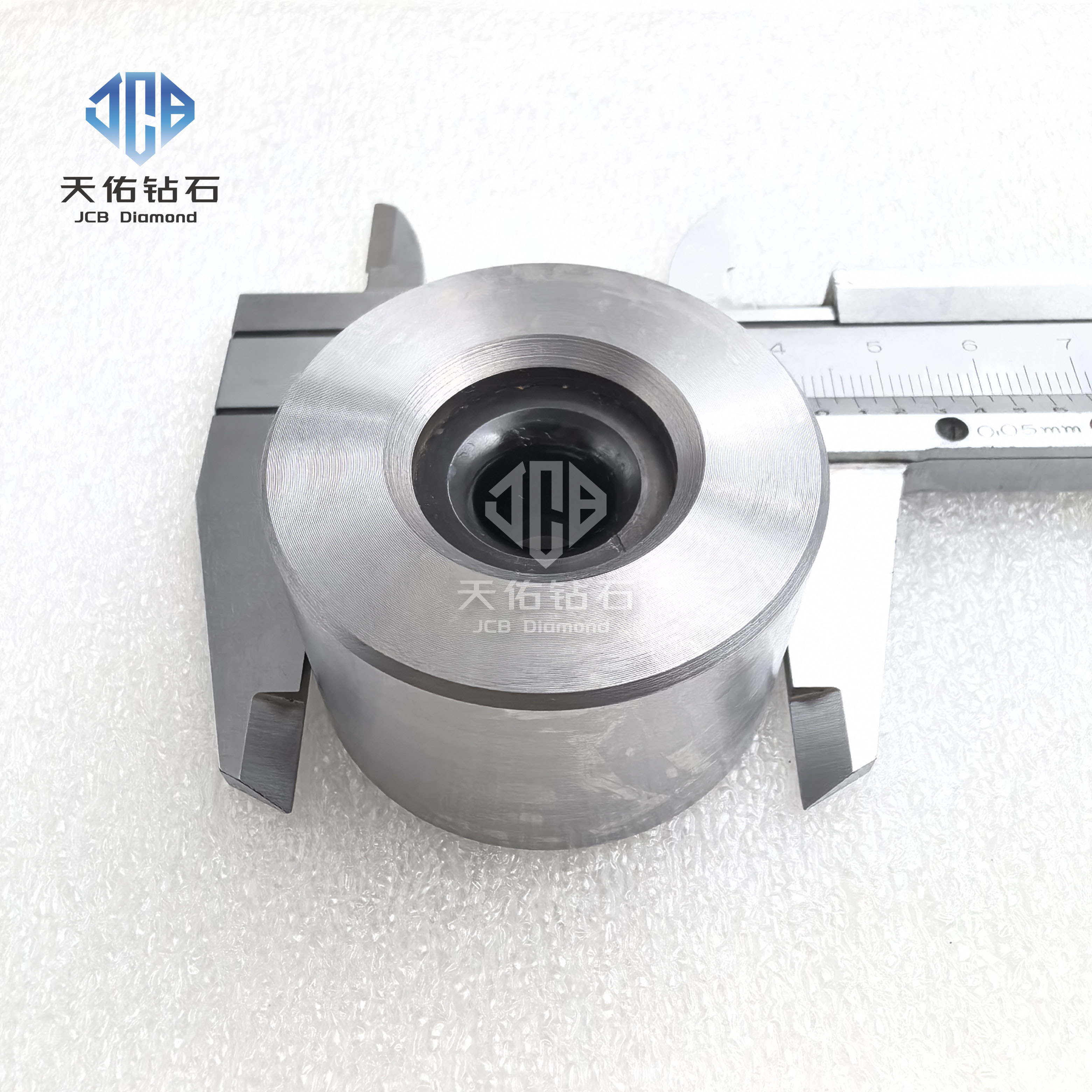

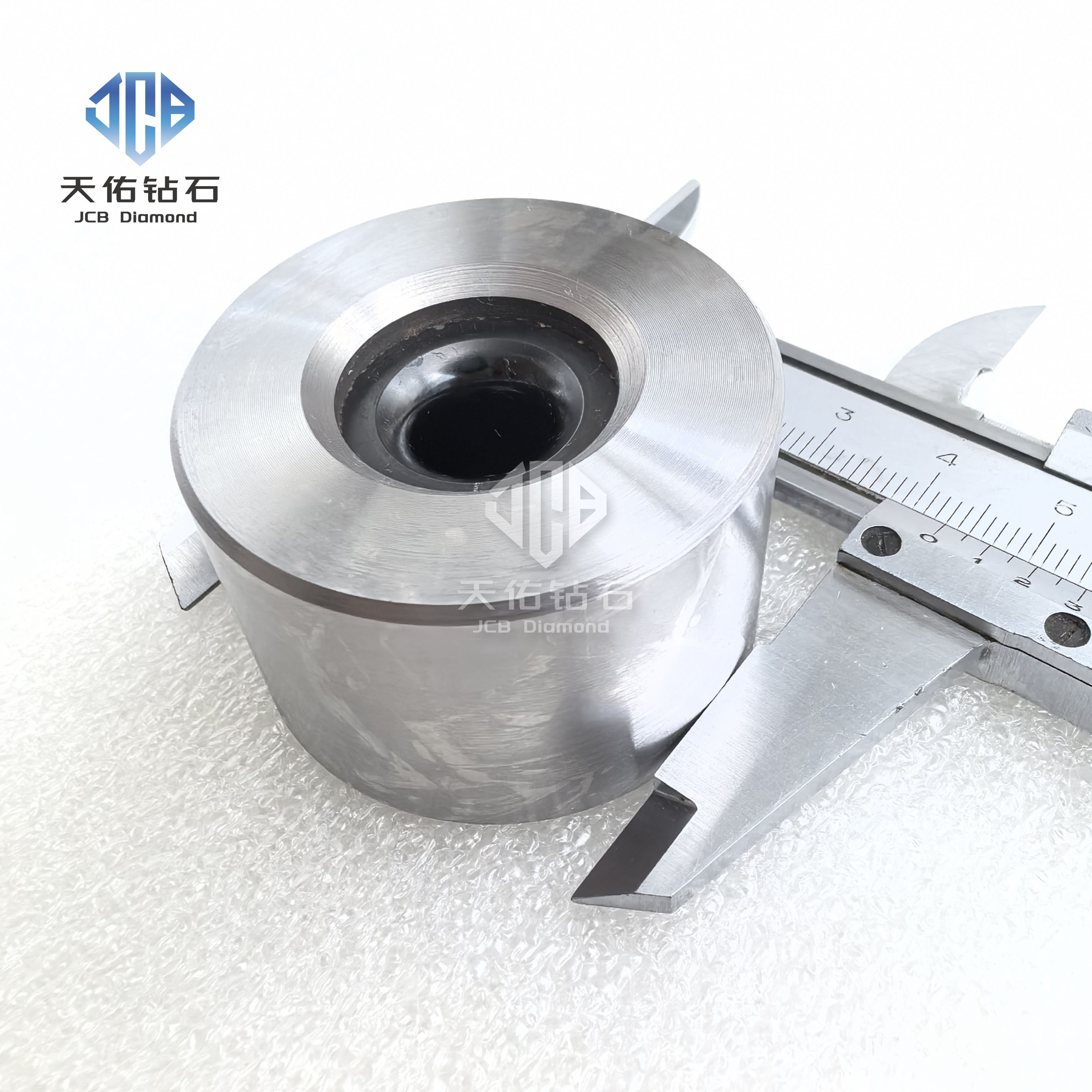

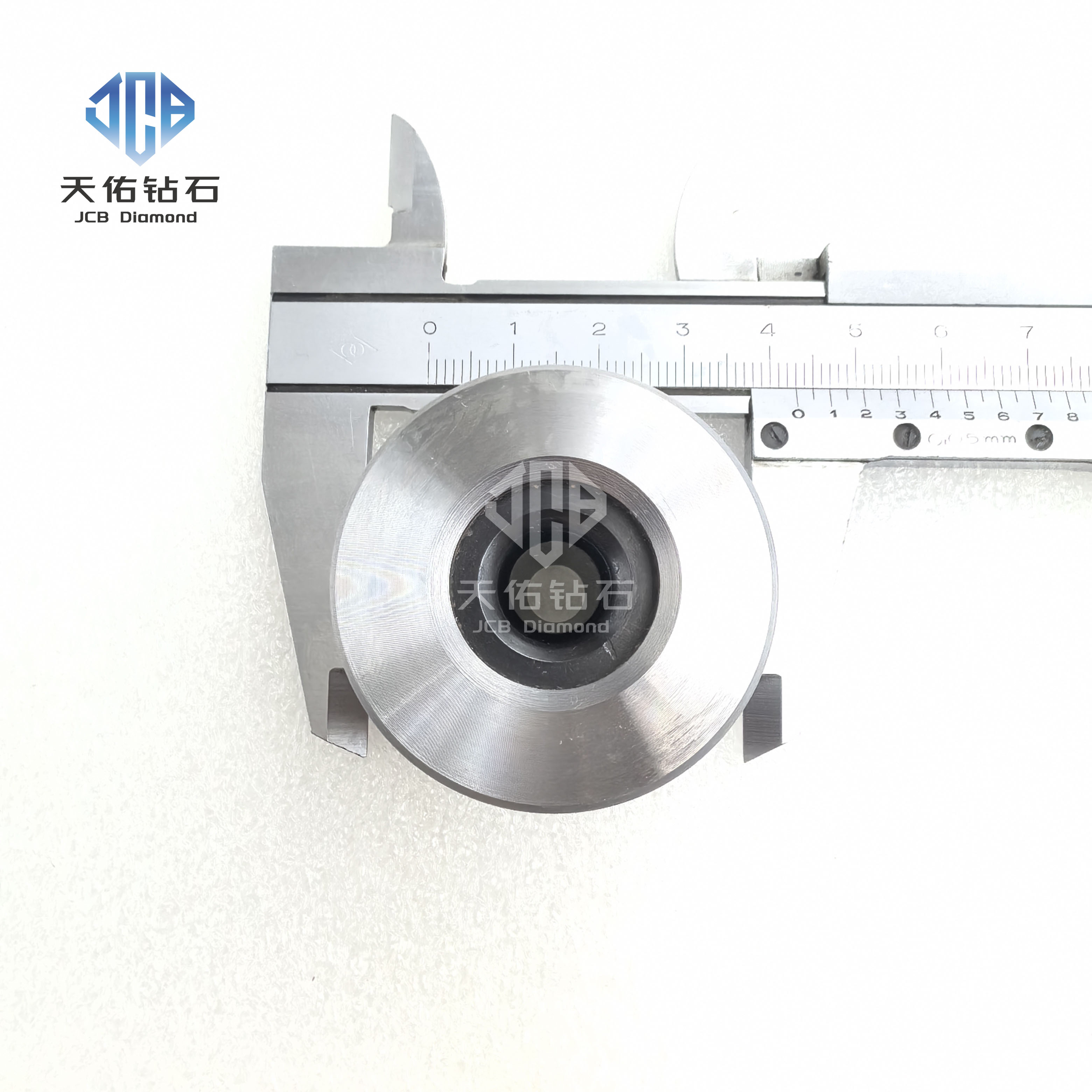

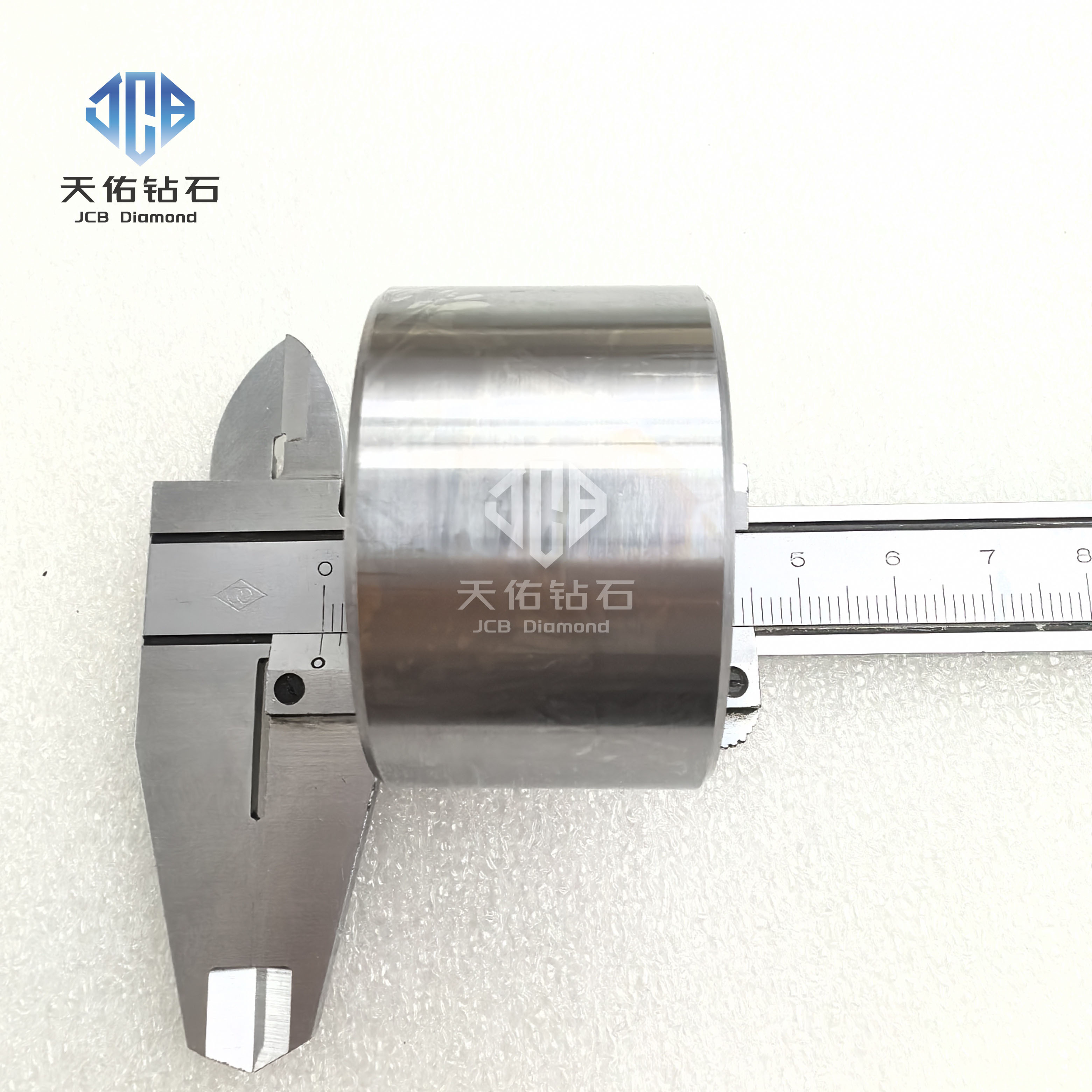

6.31mm 43*27 CVD-Coated Wire Drawing Dies-Henan JCB Superhard Material Co., Ltd

Name	Advantage	Scope of application
ND wire drawing dies	Natural diamond wire drawing dies provide ultra-high hardness, excellent wear resistance, precise die holes, superior surface finish, low friction, and long service life, ensuring stable drawing performance and consistent wire quality in high-precision applications.	Used for fine and ultra-fine wire drawing of copper, gold, silver, tungsten, and molybdenum in precision industries.
MCD wire drawing dies	High finish, high hardness, good wear resistance, high precision, can ensure the surface finish and accuracy of the wire in the long drawing process.	Suitable for drawing all kinds of soft and hard wires with a straight diameter of 0.0015-1.5mm.
PCD Wire Drawing Dies	Isotropic, processing does not have to consider its orientation, and has better toughness, high hardness, good wear resistance, high precision, high finish, in the long drawing process can ensure the surface finish and accuracy of the wire.	Suitable for drawing all kinds of soft and hard wire with diameter 0.05-30mm.
CVD Wire Drawing Dies	Polycrystalline pure diamond with high hardness and wear resistance combines the benefits of polycrystalline and single-crystal diamond dies, offering die hole accuracy, brightness, and stability close to natural diamond, along with high finish, high temperature resistance, and sustained wire surface quality and precision during long drawing processes.	Suitable for drawing all kinds of soft and hard wire with diameter of 0.05-1.0mm, especially suitable for high temperature drawing.
TC wire drawing dies	TC wire drawing dies offer high hardness, excellent wear resistance, and strong impact toughness. They maintain die shape under heavy loads, provide good dimensional stability, and are cost-effective for medium-precision and high-volume wire drawing operations.	Used for drawing steel, copper, aluminum, and alloy wires in general industrial and engineering applications.
CVD Nano wire drawing dies	CVD Nano wire drawing dies combine high surface hardness, excellent wear resistance, and strong coating adhesion with a tough substrate, providing stable hole geometry, smooth wire surface, reduced friction, and extended service life at a lower cost than natural diamond dies.	Used for drawing steel, copper, aluminum, and alloy wires in medium to high-volume industrial wire production.

Name of the part of the wire	For hard wire			For Soft wires
Name of the part of the wire	copper jacket steel	Tungsten, molybdenum	Tungsten and molybdenum	Copper line	Aluminium wire
Entrance	80 °	80 °	80 °	80 °	80 °
Lubrication Angle	35 °	35 °	35 °	35 °	35 °
Compression Angle	14 ° plus or minus 2 °	14 ° plus or minus 2 °	12 ° plus or minus 2 °	16 ° plus or minus 2 °	18 ° plus or minus 2 °
Parallel zone	0.2 ~ 0.5 D D	0.2 ~ 0.6 D D	0.2 ~ 0.8 D D	0.2 ~ 0.5 D D	0.2 ~ 0.5 D D
Decompression Angle	25 ° + / - 5 °	25 ° + / - 5 °	25 ° + / - 5 °	25 ° + / - 5 °	25 ° + / - 5 °
exit	60 °	60 °	60 °	60 °	60 °
