PDC drill bits offer high adaptability and flexibility. They can be custom‑manufactured to suit various geological features and drilling requirements, enabling them to perform effectively in a wide range of complex and constantly changing drilling conditions. Whether for oil drilling, geothermal exploration, or the mining industry, PDC drill bits always provide the most suitable solution.
PDC drill bits are designed with environmental protection and sustainable development in mind. During the production process, we use eco‑friendly materials and advanced manufacturing technologies to minimise environmental impact. At the same time, the durability and long service life of PDC drill bits reduce the need for frequent tool replacement, which in turn lowers resource consumption and emissions.
With their excellent cutting performance, stability, adaptability and environmental friendliness, PDC drill bits have become indispensable tools in modern drilling operations. They will continue to provide strong support for the development of the oil, geothermal, mining and other industries, driving technological progress and innovation.
Product Specification Table
| Parameter | Value |
|---|

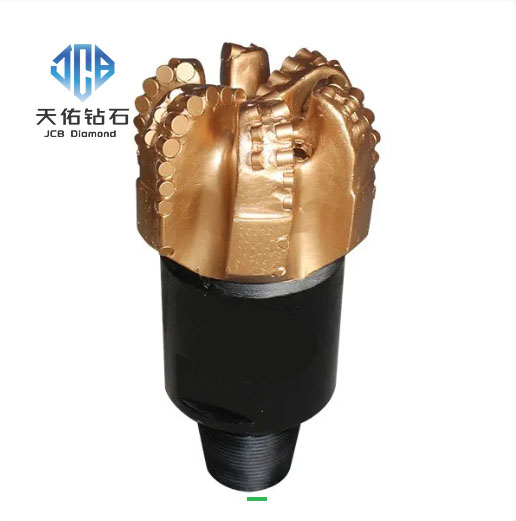

| Name / Description | 8½" (215.9 mm) PDC bit with matrix body, model CM1606 |
| Nominal Size | 8½ inch (215.9 mm) |
| Model | CM1606 |
| Series | CM |
| Body Type | Matrix |
| Primary Cutter Size | 16 mm |
| Number of Nozzles / Fluid Ports | 6 |
| Number of Blades | 6 |
| Gauge Length | 2.2" |
| Junk Slot Area (in²) | 13.2 |
| Connection | 4½" API Reg (API REG) |
| Make‑up Torque (kN·m) | 24.1 – 26.5 |
| Application | Water wells, oil wells, HDD (horizontal directional drilling), exploration, etc. |
| Weight | 75 kg |
| Certifications | API 7‑1, SY/T5164, ISO 9001:2008 |
