PDC bits also have excellent stability and durability. During drilling, they are able to withstand harsh conditions such as high temperatures and pressure, maintain a stable drilling mode, reduce failures, and extend service life. This makes PDC bits an indispensable and important tool in drilling operations.
In addition, PDC bits have high adaptability. They can be designed and manufactured to order according to the characteristics of different rocks and drilling requirements, to meet the needs of drilling in various complex geological conditions. PDC bits can show the best results in different rocks – hard, soft, clayey – ensuring successful drilling operations.
Product Technical Specifications
| Parameter | Value |
|---|

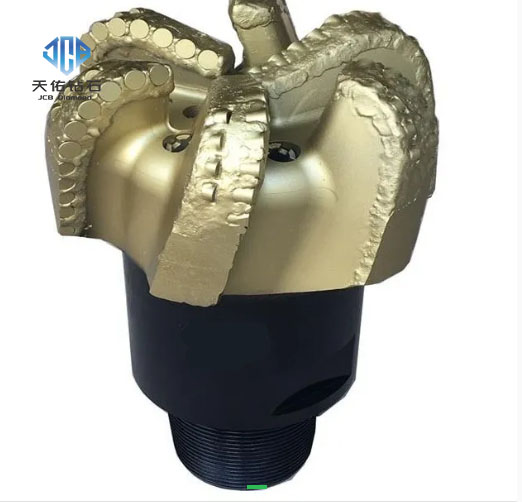

| Name / Description | Matrix PDC bit |
| Nominal Size | 13¾ inch (349 mm) |
| Model | CM1606 |
| Series | CM |
| Body Type | Matrix |
| Primary Cutter Size | 16 mm |
| Number of Wash Ports / Nozzles | 9 |
| Number of Blades | 6 |
| Gauge Length | 3″ |
| Junk Slot Area (in²) | 94.5 |
| Connection | 6⅝″ Reg |
| Make‑up Torque (kN·m) | 82.5 – 90.8 |
| Application | Water wells, oil wells, HDD (horizontal directional drilling), exploration, etc. |
| Weight | 180 kg |
| Certifications | SY/T5164, ISO 9001:2008 |
