Application Areas of PDC Bits
PDC bits are efficient and stable drilling tools widely used across various industries.
Oil and gas exploration and production: PDC bits play a crucial role in drilling operations for oil and gas extraction. They can be used in a variety of drilling scenarios, including exploration wells, production wells, and injection wells. Thanks to their high cutting efficiency and wear resistance, PDC bits significantly improve drilling speed and quality, thereby reducing overall drilling costs.
Geological exploration: PDC bits are also indispensable tools in geological exploration. Whether for core drilling or hydrogeological drilling, the superior performance of PDC bits ensures smooth exploration operations.
Mining industry: PDC bits are widely applied in the mining sector. They are used for perforation, strata fracturing, and other operations, helping mines extract resources efficiently and safely.
Tunnel construction and hydraulic engineering: PDC bits are also extensively used in tunnel boring and hydraulic engineering projects, such as reservoir construction and hydroelectric power plants. In these projects, PDC bits enable efficient drilling operations, ensuring the successful completion of the works.
Product Technical Specifications
| Parameter | Value |
|---|

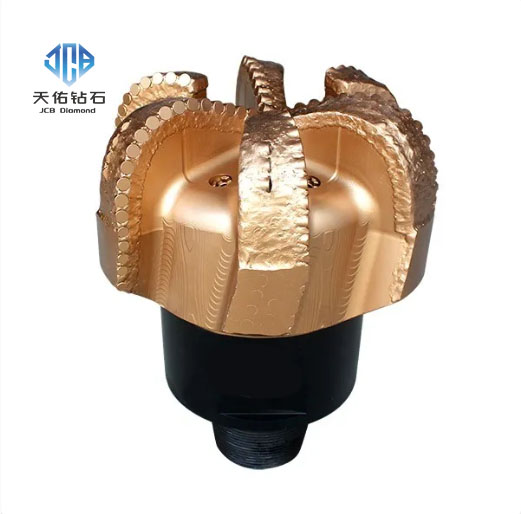

| Name / Description | Steel body PDC bit 17½″ CS1606 |
| Nominal Size | 17½ inch (444.5 mm) |
| Model | CS1606 |
| Series | CS |
| Body Type | Steel |
| Primary Cutter Size | 16 mm |
| Number of Nozzles / Wash Ports | 9 |
| Number of Blades | 6 |
| Gauge Length | 3″ |
| Junk Slot Area (in²) | 94.5 |
| Connection | 7⅝″ Reg PIN |
| Make‑up Torque (kN·m) | 82.5 – 90.8 |
| Application | Water wells, oil wells, HDD (horizontal directional drilling), exploration, etc. |
| Weight | 280 kg |
| Certifications | API 7‑1, SY/T5164, ISO 9001:2008 |
