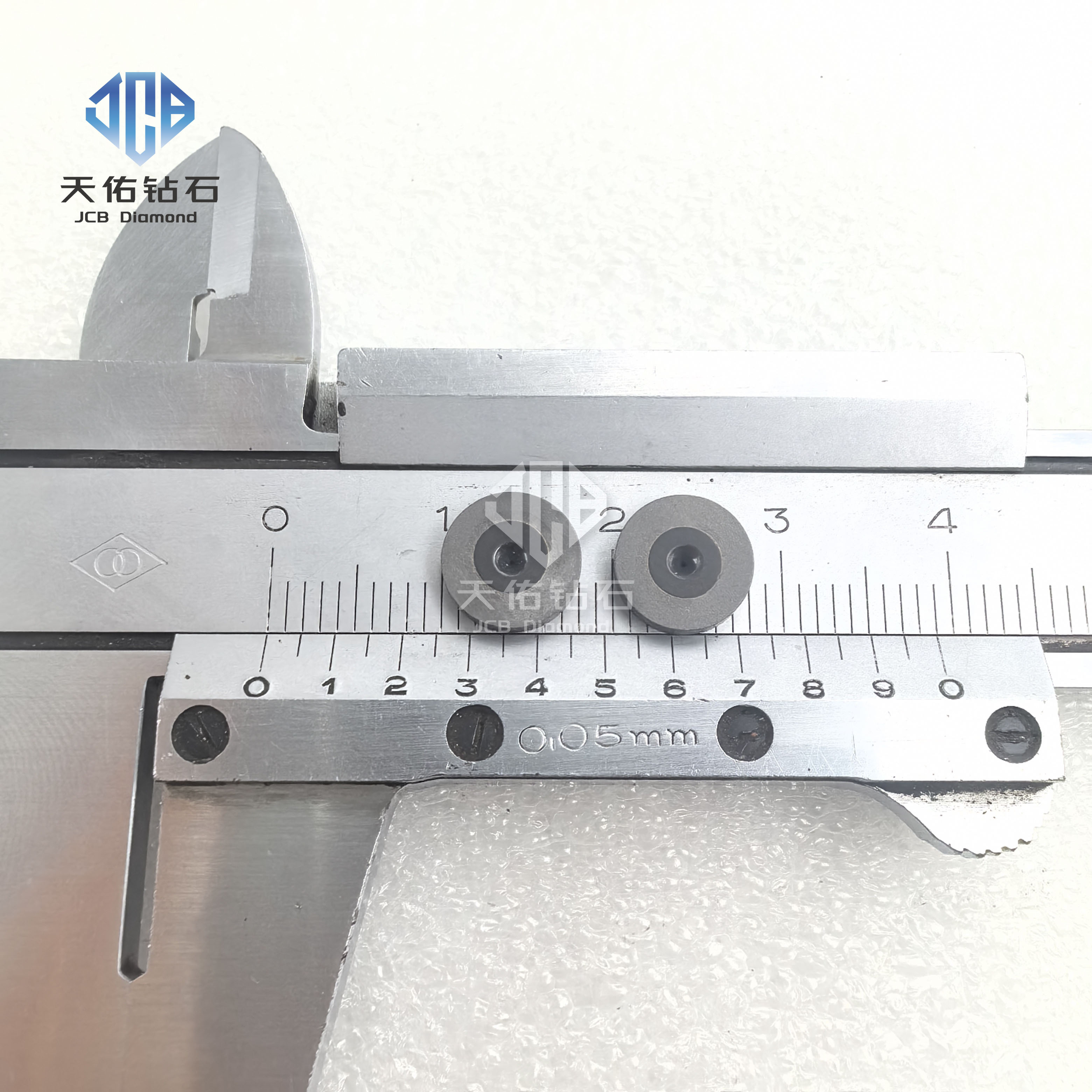

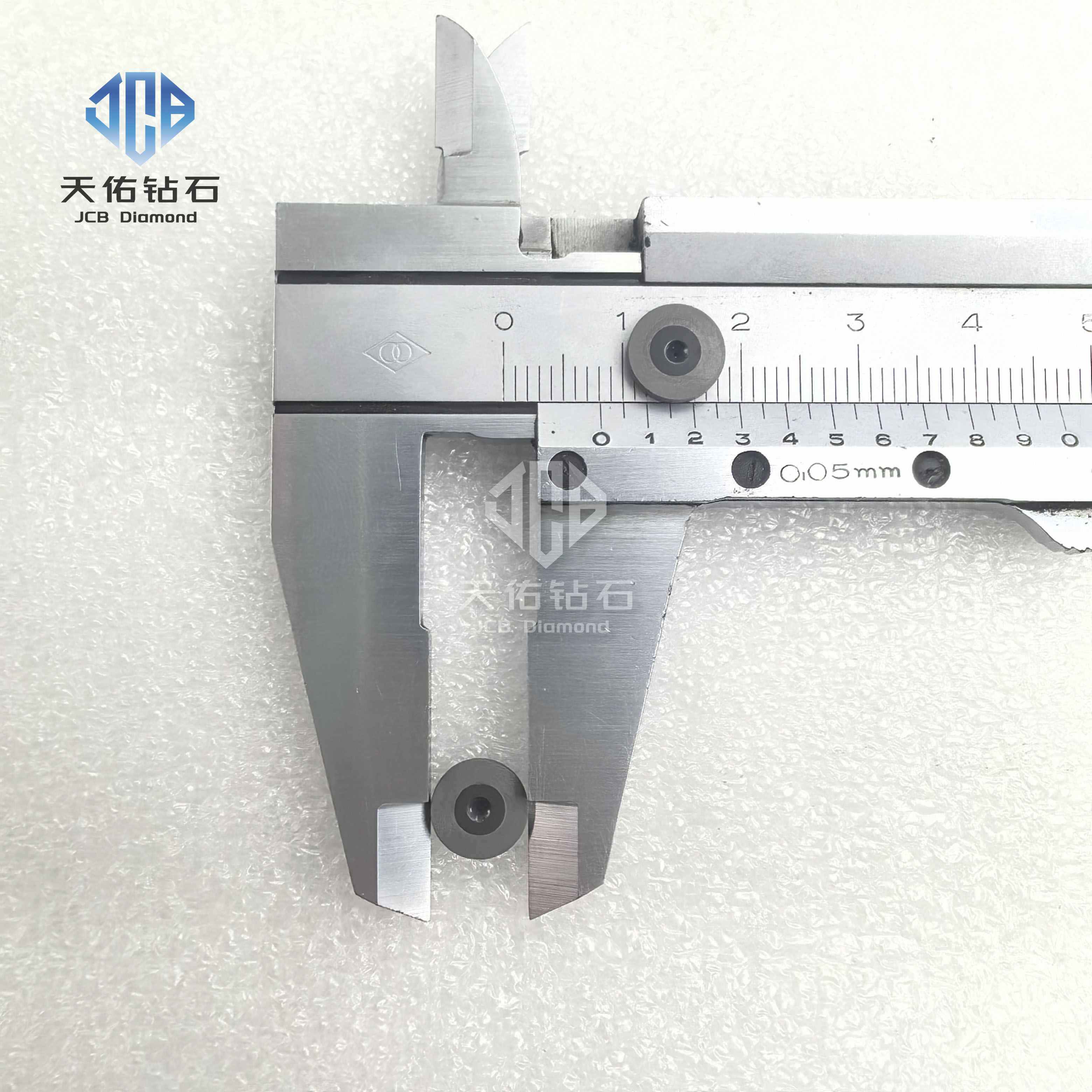

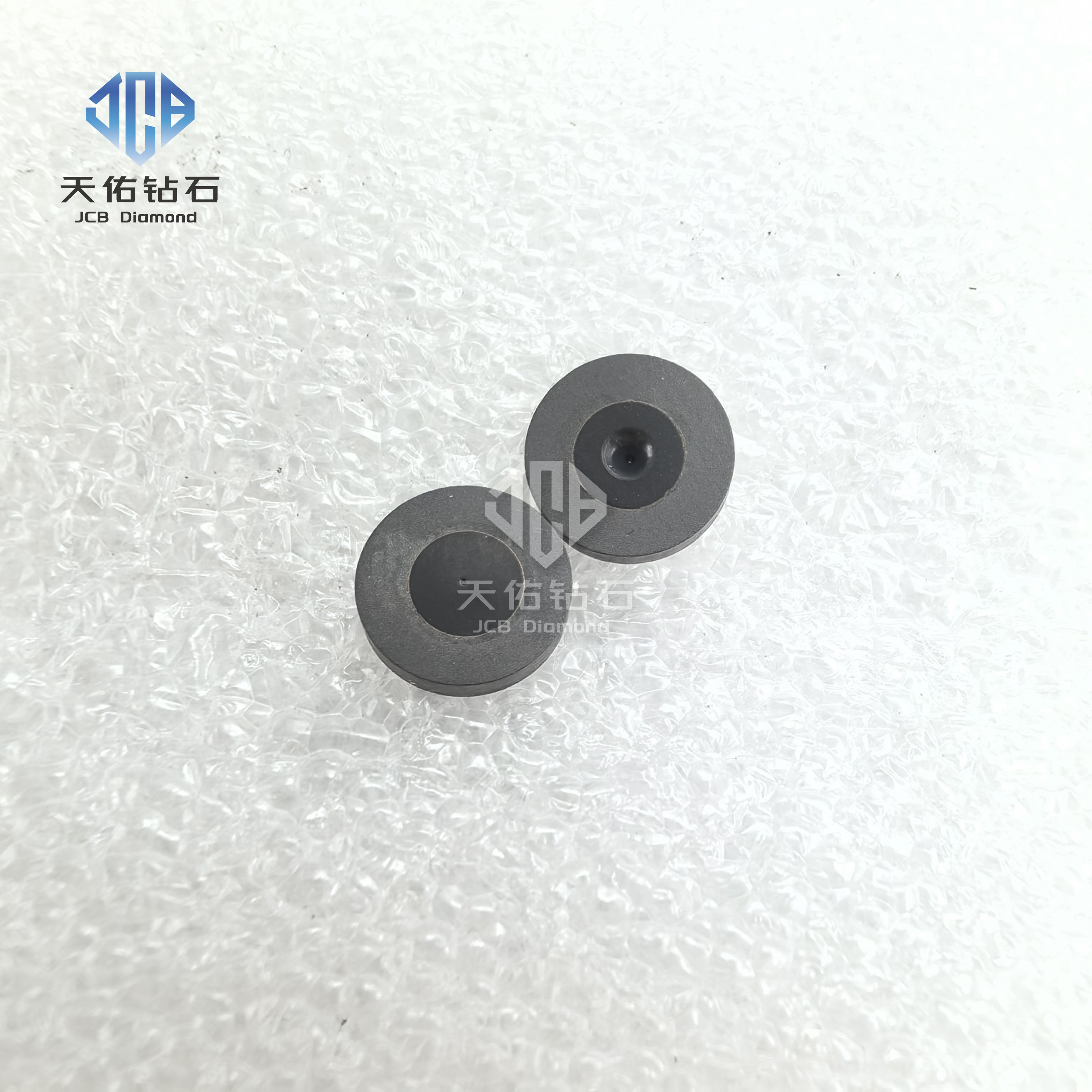

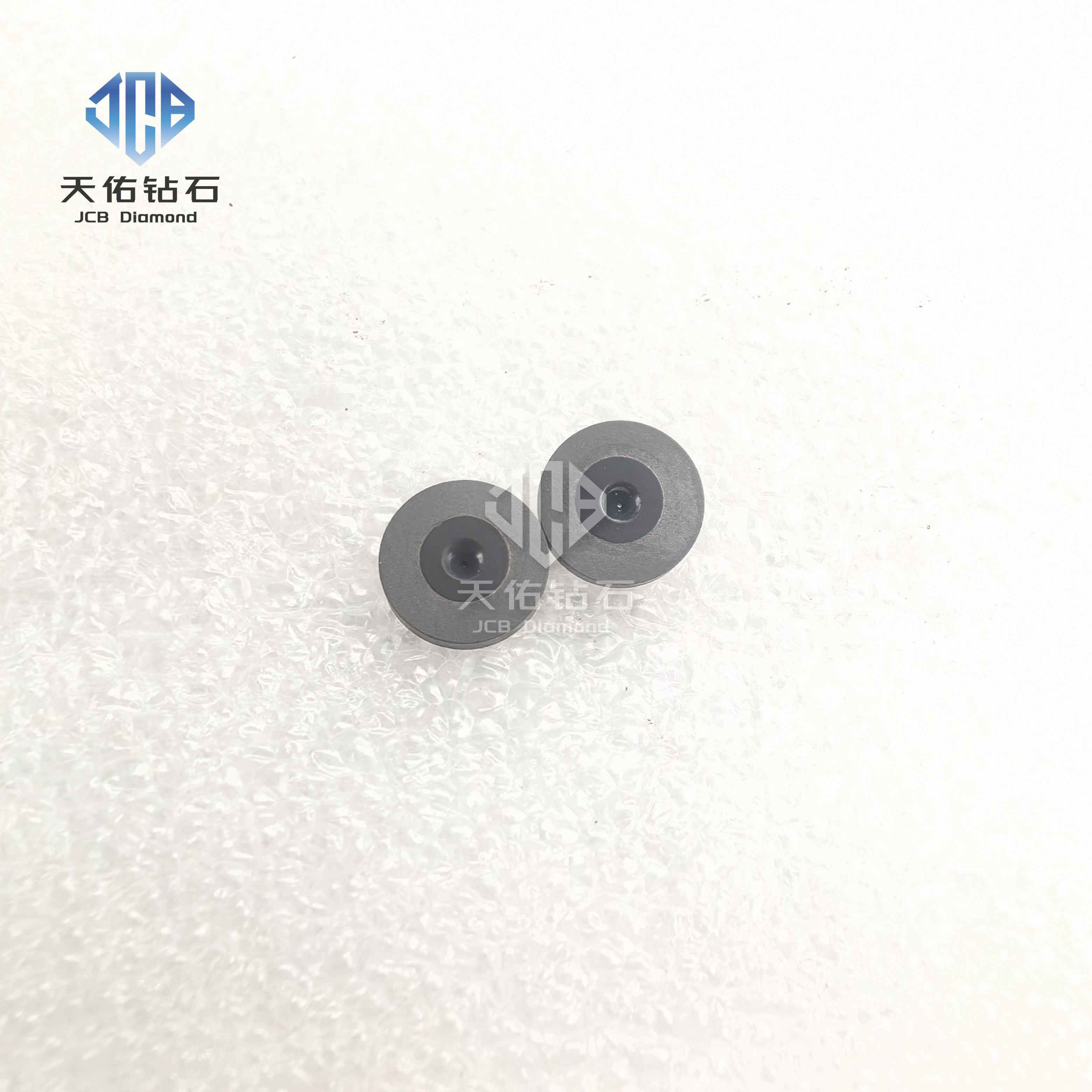

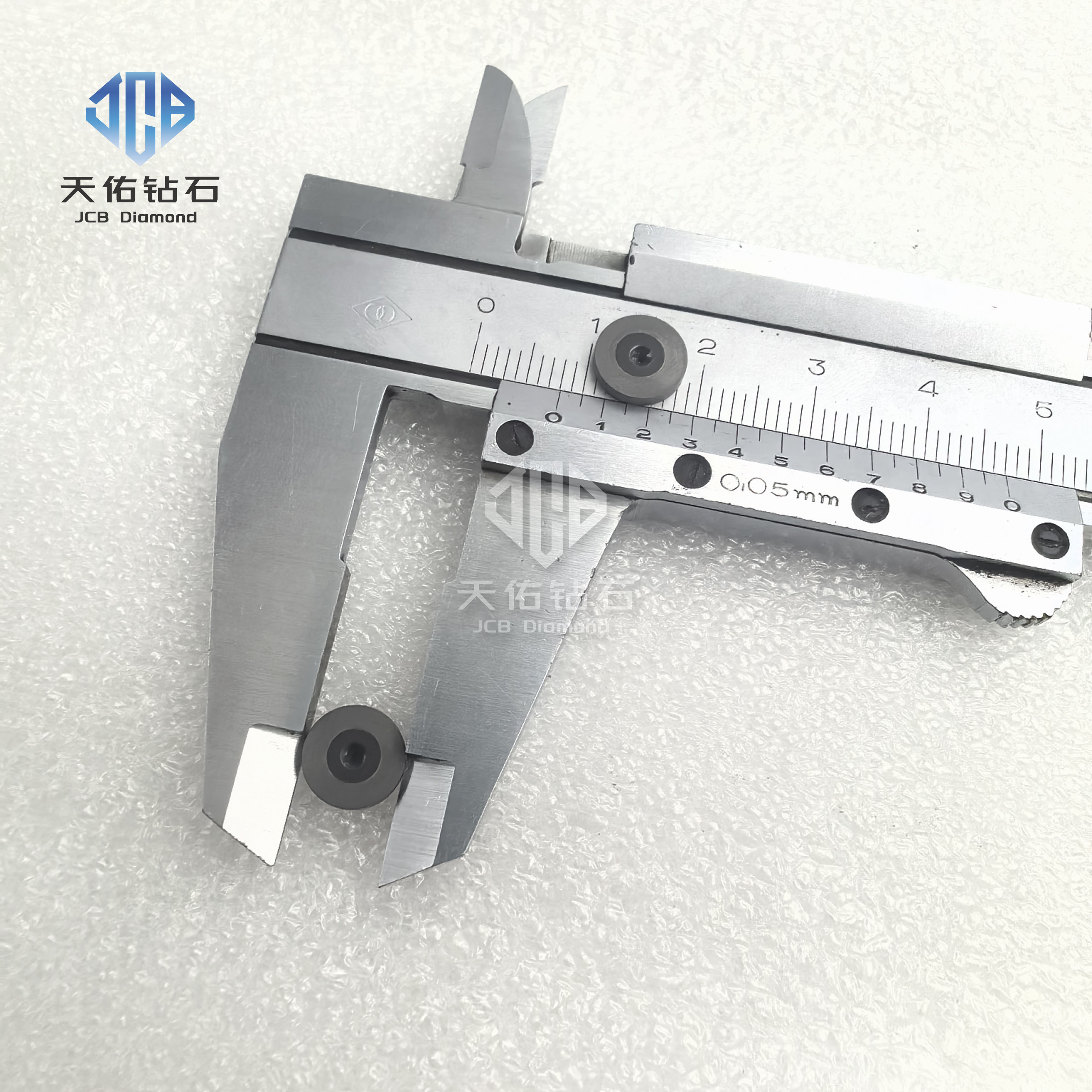

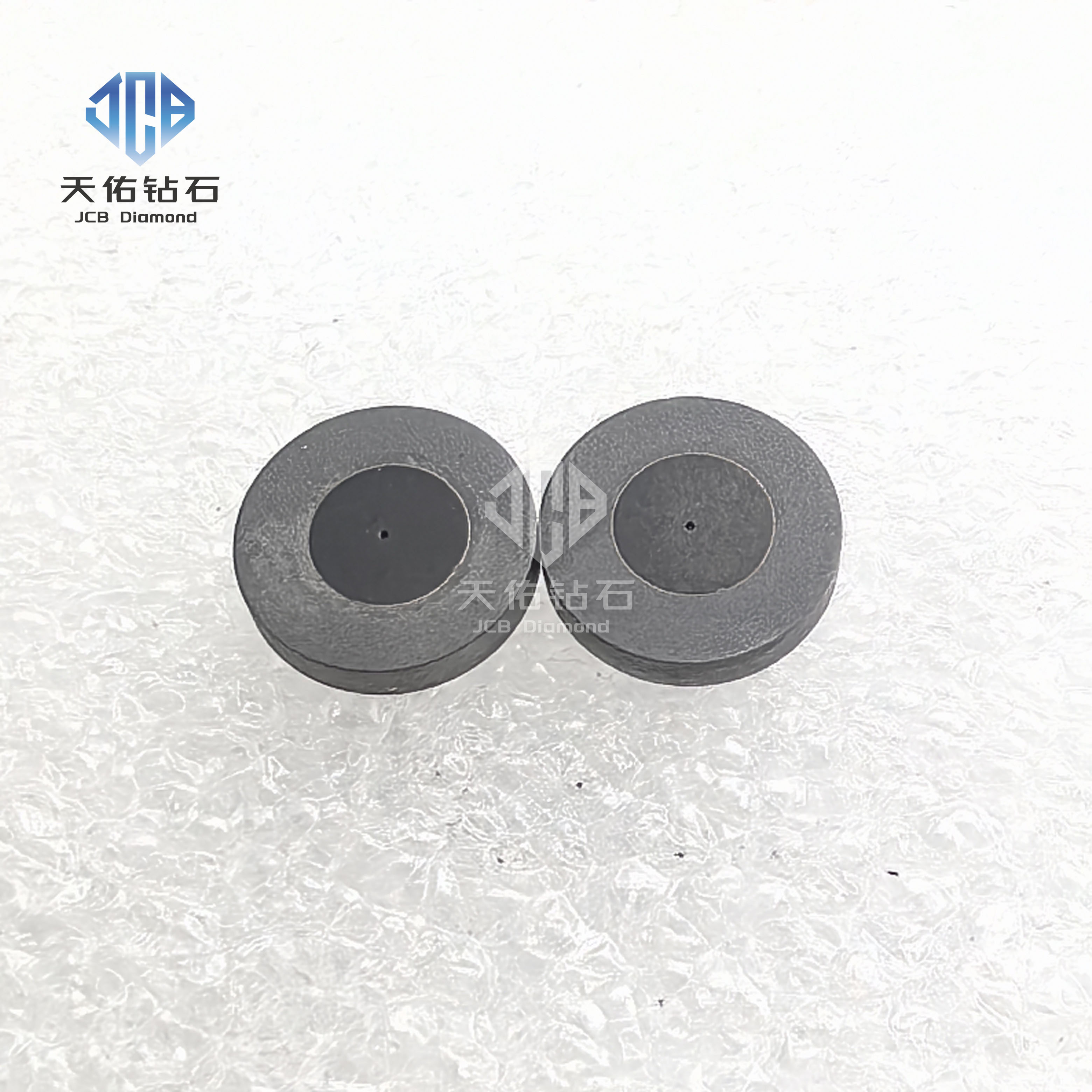

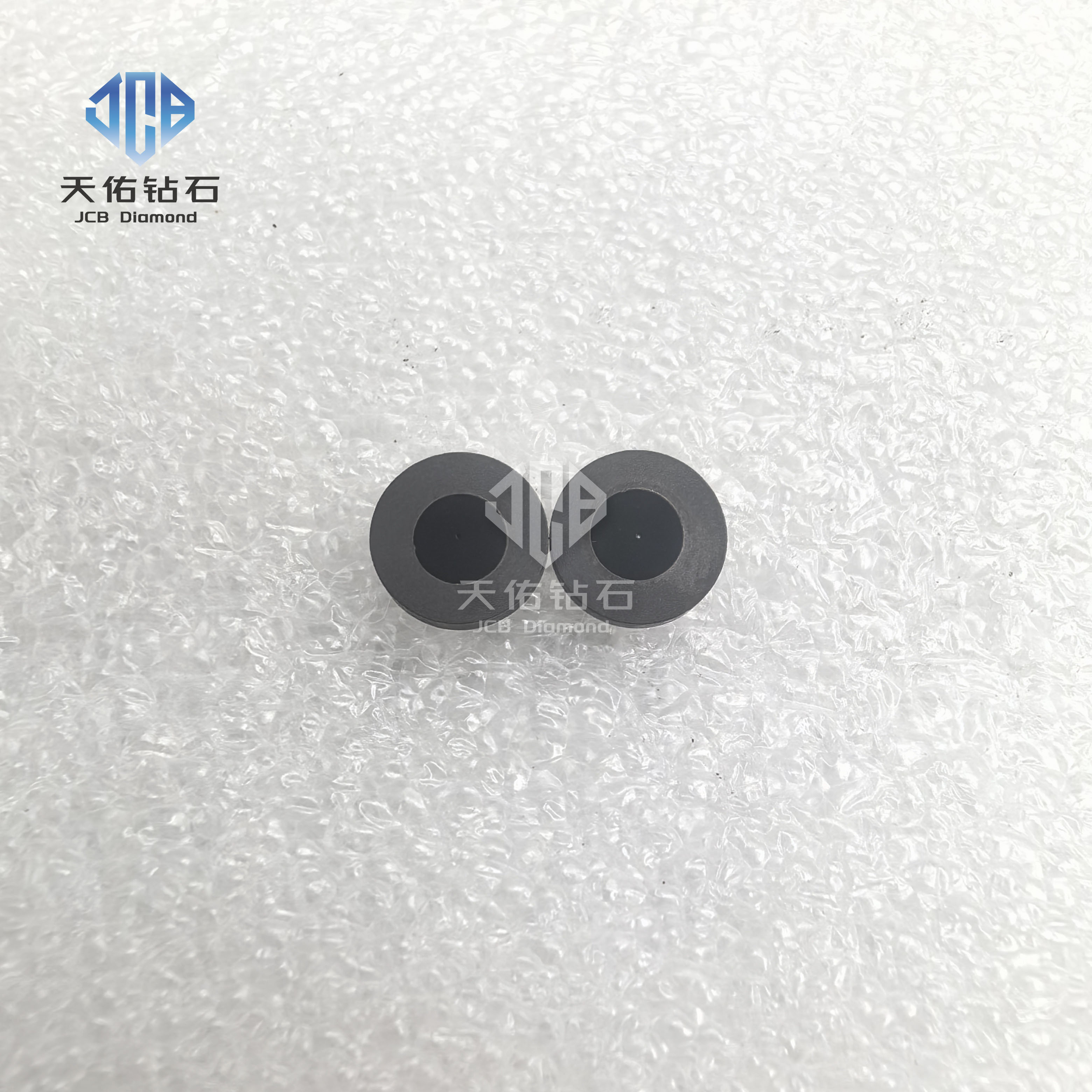

The PDC drill bit water jet nozzle is a seemingly small yet critical component of the drill bit. By converting high-pressure drilling fluid into a high-velocity jet, it cleans the wellbore, cools the drill bit, and aids in rock fragmentation, directly impacting drilling efficiency and drill bit life.
The Core Function of the PDC Nozzle:
Hydraulic Rock Fracturing and Cuttings Removal: As drilling fluid passes through the nozzle, it is pressurized and accelerated, forming a high-speed jet that impacts the rock at the bottom of the well, helping the PDC cutting teeth fracture the rock more effectively. At the same time, this powerful jet rapidly flushes cuttings (rock fragments) away from the drill bit surface, preventing their accumulation and the resulting “mud-packing” phenomenon, ensuring that the drill bit always maintains contact with fresh rock.
Efficient Cooling: PDC drill bits generate significant heat during high-speed rotation and rock cutting. The nozzle precisely directs drilling fluid onto the cutting teeth, rapidly dissipating frictional heat and preventing wear or failure of the cutting teeth due to high temperatures, thereby significantly extending the drill bit’s service life.
Optimized Hydraulic Energy: The geometry of the nozzle (such as diameter and angle) determines the shape and velocity of the jet. A well-designed nozzle maximizes the conversion of the drilling fluid’s hydraulic energy into effective rock-breaking and cuttings-clearing kinetic energy, reducing energy loss and improving the efficiency of the entire drilling system.
